The continuous, economical feeding of machines requires automated
material loading. Timme Stapelautomaten GmbH offers customised
automation solutions.
Stackable products can be unstacked using different systems and fed to
the downstream machines.
Tilt unstacking
For the easy unstacking of undressed timber, with or without spacer bars.
The stacks are raised and simultaneously tilted by about 45° so that the
workpiece layers can slide over guide rails. While the workpiece layers
are sliding, stickers are removed between the guide rails; belt
conveyors can be used to transport them out of the system and collect
them.

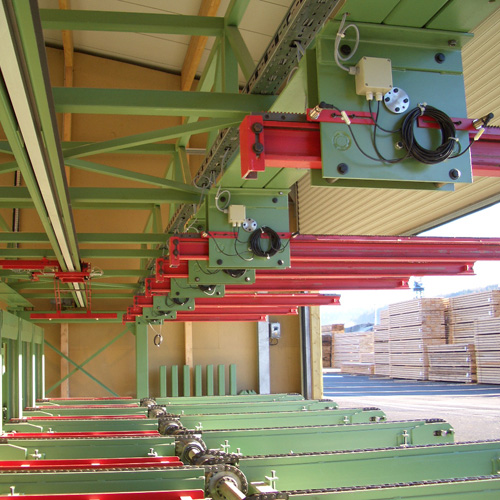

Deportation
unstacking
Lifting equipment raises the stacks to the working height of the
downstream transportation routes; then the stacks are unstacked using
horizontally driven pressure beams by pushing the workpiece layers off
horizontally.
Stickers are removed using brushes or bars.
Vacuum unstacking
In these systems, the stacks are unstacked in layers using vacuum
grippers. Depending on the requirements and the product, planar suction
grippers or special suction grippers are used. Stickers are removed
using brushes or bars.
